Learn about the database data types supported by StackRender across different database dialects such as PostgreSQL, MySQL, MariaDB, and SQLite.

Introduction

This guide explains how each data type works and the field attributes and modifiers you can configure, including nullability, uniqueness, default values, charset, collation, and other type-specific options.

PostgreSQL

Data Types

The following table lists the PostgreSQL data types supported by StackRender along with the available field modifiers. These modifiers allow you to control how each field behaves in your schema, including default values, auto-incrementing, precision, length, and enumerated options.

Data Type	Default Value	Auto Increment	Precision	Scale	Length	Enum Values
smallint	✔️	✔️	❌	❌	❌	❌
integer	✔️	✔️	❌	❌	❌	❌
bigint	✔️	✔️	❌	❌	❌	❌
numeric	✔️	❌	✔️	✔️	❌	❌
real	✔️	❌	❌	❌	❌	❌
double precision	✔️	❌	❌	❌	❌	❌
money	✔️	❌	❌	❌	❌	❌
varchar	✔️	❌	❌	❌	✔️	❌
char	✔️	❌	❌	❌	✔️	❌
text	✔️	❌	❌	❌	❌	❌
bytea	❌	❌	❌	❌	❌	❌
bit	❌	❌	❌	❌	✔️	❌
varbit	❌	❌	❌	❌	✔️	❌
timestamp	✔️	❌	✔️	❌	❌	❌
timestamptz	✔️	❌	✔️	❌	❌	❌
date	✔️	❌	❌	❌	❌	❌
time	✔️	❌	✔️	❌	❌	❌
boolean	✔️	❌	❌	❌	❌	❌
enum	✔️	❌	❌	❌	❌	✔️
point	❌	❌	❌	❌	❌	❌
line	❌	❌	❌	❌	❌	❌
lseg	❌	❌	❌	❌	❌	❌
box	❌	❌	❌	❌	❌	❌
path	❌	❌	❌	❌	❌	❌
polygon	❌	❌	❌	❌	❌	❌
circle	❌	❌	❌	❌	❌	❌
uuid	✔️	❌	❌	❌	❌	❌
json	❌	❌	❌	❌	❌	❌
jsonb	❌	❌	❌	❌	❌	❌
xml	❌	❌	❌	❌	❌	❌
cidr	❌	❌	❌	❌	❌	❌
inet	❌	❌	❌	❌	❌	❌
macaddr	❌	❌	❌	❌	❌	❌
tsvector	❌	❌	❌	❌	❌	❌
tsquery	❌	❌	❌	❌	❌	❌

Type-Specific Features

Some data types in PostgreSQL have special behaviors or options that go beyond standard fields. StackRender supports these PostgreSQL-specific features, allowing you to define advanced database structures such as ENUM types, UUIDs, and SERIALs. These features provide more flexibility and control over your schema design.

PostgreSQL Type (ENUMs)

To create an ENUM type in PostgreSQL using StackRender, start by creating a regular field and giving it a name. In the type combobox, search for and select ENUM.

Once the field settings are opened in the right panel, extra options will appear. You’ll see a multi-value input where you can add your enum values. Enter each value followed by ENTER:

value_1, ENTER, value_2, ENTER, value_3, ENTER ...

Check the following demo to see how the ENUM is created and how it is reflected in the generated SQL output.

StackRender automatically generates the PostgreSQL ENUM type and assigns it a name in the following format: <table_name>_<column_name>_enum. See the generated SQL below:
```
CREATE TYPE "users_role_enum" AS ENUM('user', 'customer', 'admin', 'vendor');

CREATE TABLE "users" (
    id SERIAL NOT NULL PRIMARY KEY,
    full_name VARCHAR NOT NULL,
    email VARCHAR(100) NOT NULL UNIQUE,
    picture_url VARCHAR NULL,
    phone_number VARCHAR NULL UNIQUE,
    password_hash VARCHAR NOT NULL,
    role users_role_enum NOT NULL DEFAULT 'user'
);
```
StackRender automatically applies type casting when a field’s data type is changed, including ENUM types, to ensure data integrity and prevent migration errors.

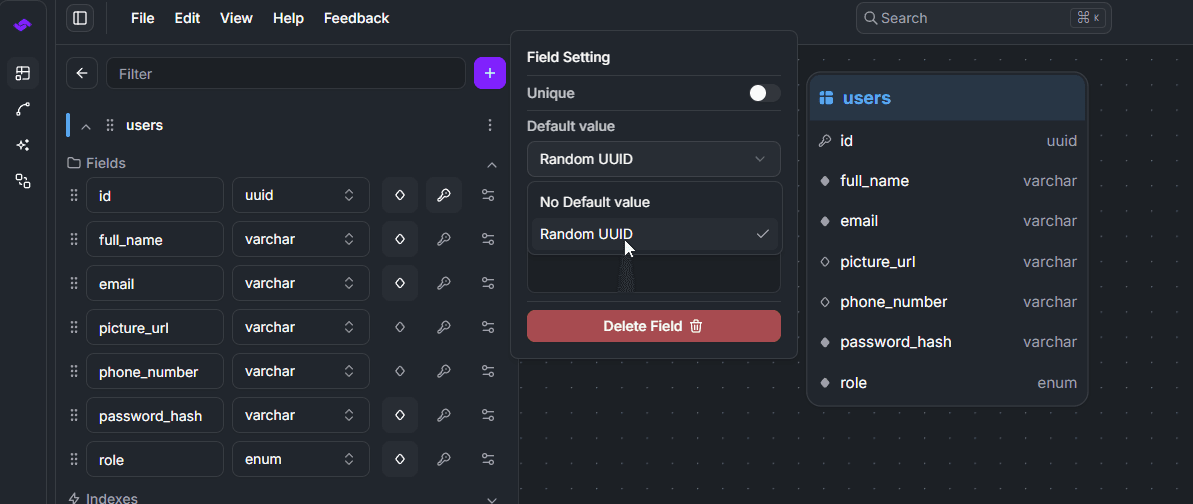

UUID

The UUID data type in PostgreSQL supports an additional option for generating a UUIDv4 default value.

To enable it, create a field with the UUID data type, then open the field settings panel. In the Default Value selector, choose the Random Value option. Once configured, StackRender will automatically generate the appropriate UUIDv4 default expression in the resulting SQL output.
```
CREATE TABLE "users" (
    id UUID NOT NULL DEFAULT gen_random_uuid() PRIMARY KEY,
    full_name VARCHAR NOT NULL
);
```
SERIAL Types

PostgreSQL provides special SERIAL types that combine an integer column with auto-increment behavior. In StackRender, you can define a SERIAL field by creating a regular integer field and enabling Auto Increment in the field settings.

StackRender will automatically generate the appropriate SERIAL type in the SQL output.
- PostgreSQL supports three SERIAL variants:

  SMALLSERIAL (2 bytes) : Equivalent to a SMALLINT with auto-increment.

  SMALLSERIAL = SMALLINT + Auto Increment

  SERIAL (4 bytes) : Equivalent to an INTEGER with auto-increment.

  SERIAL = INTEGER + Auto Increment

  BIGSERIAL (8 bytes) : Equivalent to a BIGINT with auto-increment.

  BIGSERIAL = BIGINT + Auto Increment

MySQL

Data Types

The following table lists the MySQL data types supported by StackRender along with their available field attributes and modifiers. These modifiers allow you to control how each field behaves in your schema, including default values, auto-increment, uniqueness, length, precision, scale, unsigned and zerofill options, charset and collation settings, and enumerated values.

Data Type	Default Value	Auto Increment	Unique	Length	Precision	Scale	Unsigned	Zerofill	Charset	Collate	Values
integer	✔️	✔️	✔️	✔️	❌	❌	✔️	✔️	❌	❌	❌
tinyint	✔️	✔️	✔️	✔️	❌	❌	✔️	✔️	❌	❌	❌
smallint	✔️	✔️	✔️	✔️	❌	❌	✔️	✔️	❌	❌	❌
mediumint	✔️	✔️	✔️	✔️	❌	❌	✔️	✔️	❌	❌	❌
bigint	✔️	✔️	✔️	✔️	❌	❌	✔️	✔️	❌	❌	❌
float	✔️	❌	✔️	❌	✔️	✔️	✔️	✔️	❌	❌	❌
double	✔️	❌	✔️	❌	✔️	✔️	✔️	✔️	❌	❌	❌
decimal	✔️	❌	✔️	❌	✔️	✔️	✔️	✔️	❌	❌	❌
boolean	✔️	❌	✔️	❌	❌	❌	❌	❌	❌	❌	❌
date	✔️	❌	✔️	❌	❌	❌	❌	❌	❌	❌	❌
datetime	✔️	❌	✔️	❌	✔️	❌	❌	❌	❌	❌	❌
timestamp	✔️	❌	✔️	❌	✔️	❌	❌	❌	❌	❌	❌
time	✔️	❌	✔️	❌	✔️	❌	❌	❌	❌	❌	❌
year	✔️	❌	✔️	❌	❌	❌	❌	❌	❌	❌	❌
char	✔️	❌	✔️	✔️	❌	❌	❌	❌	✔️	✔️	❌
varchar	✔️	❌	✔️	✔️	❌	❌	❌	❌	✔️	✔️	❌
text	❌	❌	❌	❌	❌	❌	❌	❌	✔️	✔️	❌
tinytext	❌	❌	❌	❌	❌	❌	❌	❌	✔️	✔️	❌
mediumtext	❌	❌	❌	❌	❌	❌	❌	❌	✔️	✔️	❌
longtext	❌	❌	❌	❌	❌	❌	❌	❌	✔️	✔️	❌
binary	❌	❌	✔️	✔️	❌	❌	❌	❌	❌	❌	❌
varbinary	❌	❌	✔️	✔️	❌	❌	❌	❌	❌	❌	❌
blob	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
tinyblob	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
mediumblob	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
longblob	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
enum	✔️	❌	✔️	❌	❌	❌	❌	❌	❌	❌	✔️
set	✔️	❌	✔️	❌	❌	❌	❌	❌	❌	❌	✔️
json	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
geometry	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
point	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
linestring	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
polygon	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
geometrycollection	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌

Type-Specific Features

Some MySQL features provide additional capabilities beyond standard data types. StackRender supports several MySQL-specific field options that allow you to further customize how your data is stored and handled in your schema.
- Charset & Collation

  Text-based fields in MySQL support additional configuration through character sets (charsets) and collations. These options control how text is stored and how string comparisons are performed.

  In StackRender, you can configure these options directly from the field settings panel. Create a text field, open the field settings, and select the desired charset and collation from the available options based on your requirements.
  Charsets
  utf8mb4

  utf8mb3

  latin1

  ascii

  binary

  ucs2

  utf16

  utf32

  big5

  gb2312

  gbk

  sjis

  euckr
  Collations
  utf8mb4_general_ci

  utf8mb4_unicode_ci

  utf8mb4_bin

  utf8mb4_0900_ai_ci

  latin1_swedish_ci

  latin1_general_ci

  ascii_general_ci

  binary

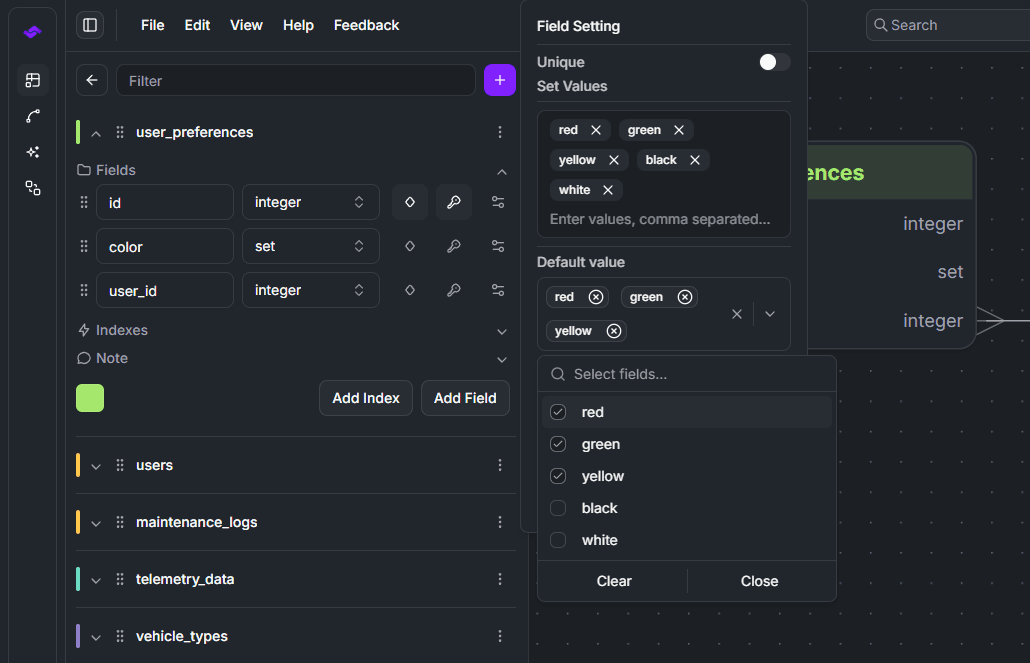

- SET

  The SET data type in MySQL is similar to ENUM, but with one key difference: it allows multiple values to be selected.

  In StackRender, defining a SET field works the same way as creating an ENUM. Create a field, select the SET data type, and add the allowed values in the field settings.

  Additionally, MySQL SET fields support multiple default values. In StackRender, you can select multiple values in the Default Value setting to define the default selection.

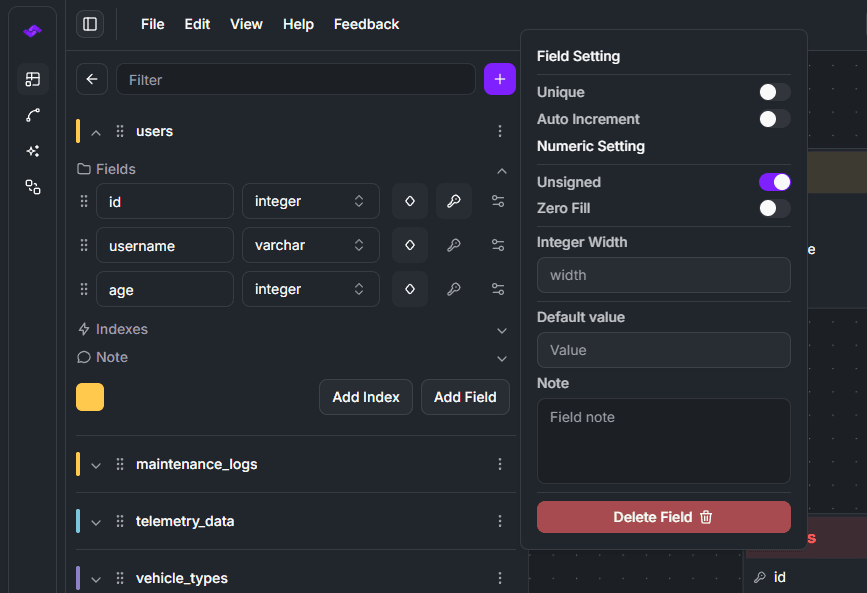

- UNSIGNED & ZEROFILL

  UNSIGNED and ZEROFILL are attributes supported by MySQL numeric data types, including both integer and decimal fields.

  In StackRender, you can enable these options from the field settings panel. Two checkboxes are available: one for UNSIGNED and another for ZEROFILL.

  Deprecated feature
  These attributes are deprecated in MySQL 8+. If the generated SQL is executed on a MySQL version newer than 8, the database may ignore these options.

MariaDB

Data Types

The following table lists the MariaDB data types supported by StackRender along with the available field modifiers. These modifiers allow you to control how each field behaves in your schema, including default values, auto-incrementing behavior, precision, length, unsigned attributes, character sets, collations, and enumerated values.

Data Type	Default Value	Auto Increment	Unsigned	ZeroFill	Length	Precision	Scale	Charset	Collation	Enum Values
bit	✔️	❌	❌	❌	✔️	❌	❌	❌	❌	❌
integer / int	✔️	✔️	✔️	✔️	✔️	❌	❌	❌	❌	❌
tinyint	✔️	✔️	✔️	✔️	✔️	❌	❌	❌	❌	❌
smallint	✔️	✔️	✔️	✔️	✔️	❌	❌	❌	❌	❌
mediumint	✔️	✔️	✔️	✔️	✔️	❌	❌	❌	❌	❌
bigint	✔️	✔️	✔️	✔️	✔️	❌	❌	❌	❌	❌
float	✔️	❌	✔️	✔️	❌	✔️	✔️	❌	❌	❌
double	✔️	❌	✔️	✔️	❌	✔️	✔️	❌	❌	❌
decimal	✔️	❌	✔️	✔️	❌	✔️	✔️	❌	❌	❌
boolean / bool	✔️	❌	❌	❌	❌	❌	❌	❌	❌	❌
date	✔️	❌	❌	❌	❌	❌	❌	❌	❌	❌
datetime	✔️	❌	❌	❌	❌	✔️	❌	❌	❌	❌
timestamp	✔️	❌	❌	❌	❌	✔️	❌	❌	❌	❌
time	✔️	❌	❌	❌	❌	✔️	❌	❌	❌	❌
year	✔️	❌	❌	❌	❌	❌	❌	❌	❌	❌
char	✔️	❌	❌	❌	✔️	❌	❌	✔️	✔️	❌
varchar	✔️	❌	❌	❌	✔️	❌	❌	✔️	✔️	❌
text	❌	❌	❌	❌	❌	❌	❌	✔️	✔️	❌
tinytext	❌	❌	❌	❌	❌	❌	❌	✔️	✔️	❌
mediumtext	❌	❌	❌	❌	❌	❌	❌	✔️	✔️	❌
longtext	❌	❌	❌	❌	❌	❌	❌	✔️	✔️	❌
blob	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
tinyblob	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
mediumblob	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
longblob	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
binary	❌	❌	❌	❌	✔️	❌	❌	❌	❌	❌
varbinary	❌	❌	❌	❌	✔️	❌	❌	❌	❌	❌
enum	✔️	❌	❌	❌	❌	❌	❌	✔️	✔️	✔️
set	✔️	❌	❌	❌	❌	❌	❌	✔️	✔️	✔️
json	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
geometry	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
point	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
linestring	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
polygon	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
multipoint	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
multilinestring	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
multipolygon	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
geometrycollection	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
uuid	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
inet4	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌
inet6	❌	❌	❌	❌	❌	❌	❌	❌	❌	❌

Type-Specific Features

MariaDB shares most of its type-specific features with MySQL, including support for options such as Charsets, Collations, SET, and UNSIGNED / ZEROFILL attributes.

In addition, MariaDB provides extra data types supported by StackRender, including UUID and network address types such as INET4 and INET6, which are useful for storing and managing IP addresses.

Sqlite

Data Types

SQLite uses a dynamic type system with a small set of core storage classes. Many data types are simply aliases or synonyms that map to the same underlying storage behavior.

The following table lists the SQLite data types supported by StackRender along with the available field modifiers. These modifiers allow you to control field behavior in your schema, including default values, auto-incrementing fields, length constraints, and numeric precision.

Data Type	Default Value	Auto Increment	Length	Precision
integer	✔️	✔️	❌	❌
text	✔️	❌	✔️	❌
real	✔️	❌	❌	❌
numeric	✔️	❌	❌	✔️
blob	❌	❌	❌	❌
boolean	✔️	❌	❌	❌
date	✔️	❌	❌	❌
time	✔️	❌	❌	❌
datetime	✔️	❌	❌	❌
json	❌	❌	❌	❌

Date & Time

Date and time data types are supported across all four database dialects in StackRender. These fields also come with additional options for default values, allowing you to define how records are initialized automatically.

DateTime

Supported date time data types:
- DATETIME
- TIMESTAMP
- TIMESTAMPTZ
In StackRender, these types support three default value options:
1. No Default Value – the field will remain empty unless explicitly set.
```
due_date TIMESTAMP NOT NULL
```
2. Custom Default Value – specify a fixed value to be assigned by default.
```
fixed_date TIMESTAMP NOT NULL DEFAULT '2026-03-11 03:08:25'
```
3. NOW() Function – automatically sets the field to the current date and time when a record is created.
```
created_at TIMESTAMPTZ NULL DEFAULT CURRENT_TIMESTAMP
```
Date

The DATE data type is supported by all four database dialects. It is used to store calendar dates and supports a custom default value or can be left empty. You can configure this directly in StackRender’s field settings for your database schema.
```
certification_date DATE NULL DEFAULT '1999-01-01'
```
Year

The YEAR data type is specific to MySQL and MariaDB. It is used to store year values and supports setting a custom default value or leaving the field empty. StackRender allows you to configure this directly in the field settings for your database schema.
```
construction_year YEAR NULL DEFAULT '1999'
```
TIME

The TIME data type is supported by all four database dialects. It is used to store time values and allows setting a custom default value directly in StackRender’s field settings. You can also leave the field empty if no default is required.
```
check_in TIME NULL DEFAULT '08:00:00'
```
