Table & Fields

Learn how to create and manage tables and fields in StackRender to build and organize your database schema. This guide explains how to define tables, add fields, and structure your data using the diagram editor.

Create Table

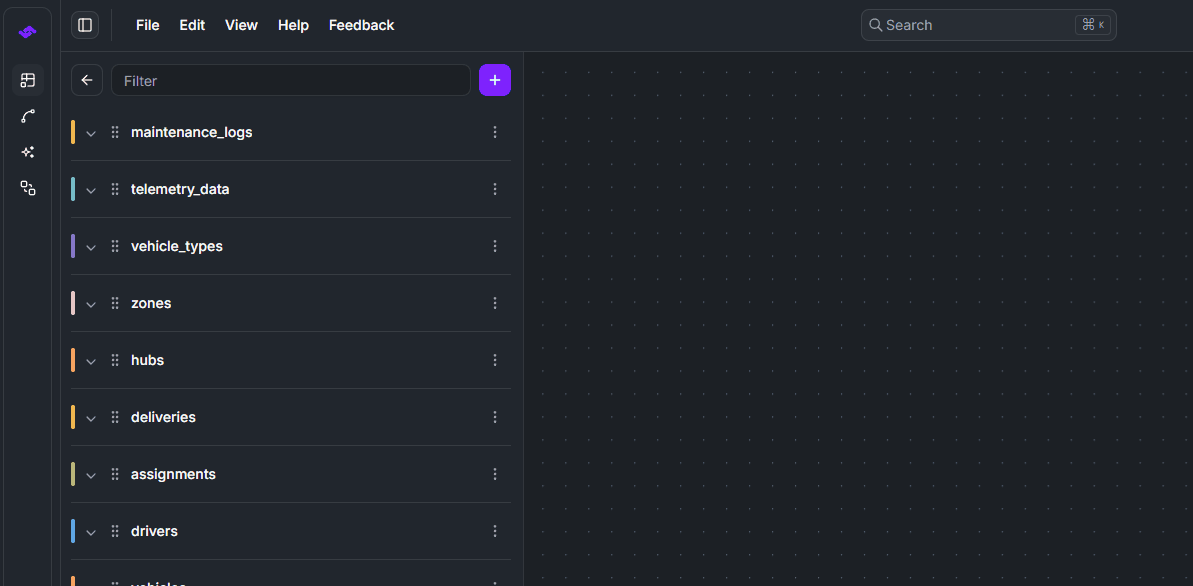

To create a new table, click the Plus Sign icon in the left panel. The table will appear on the diagram canvas as well as in the left panel, ready to be edited and customized to your needs. StackRender Create new table and field

Table Actions

StackRender allows you to perform additional actions on your tables to organize and personalize your database diagrams. You can rename tables, duplicate them, add notes, reorder tables, and customize their colors for better clarity.

Field Attributes & Modifiers

Fields in StackRender support a variety of field attributes and modifiers depending on the selected data type and database dialect. Here are the attributes and modifiers you can control for each table field:

Name

Data Types

Primary Key

Uniqueness

Auto Increment

Default Value

Nullability

Length / Width

Scale

Precision

Unsigned MySQL Only

ZeroFill MySQL Only

Charset MySQL Only

Collation MySQL Only

Enum Values No Sqlite

Note

If multiple primary keys are defined a composite primary key will be generated in the SQL output.

CREATE TABLE EmployeeRoomAssignment (
    employee_id INT NOT NULL,
    room_id INT NOT NULL,
    assigned_date DATE,
    PRIMARY KEY (employee_id, room_id)
);

In the next page, we’ll explore database field data types in detail and explain the attributes and modifiers available for each type. This will help you design your schema more accurately and efficiently.
